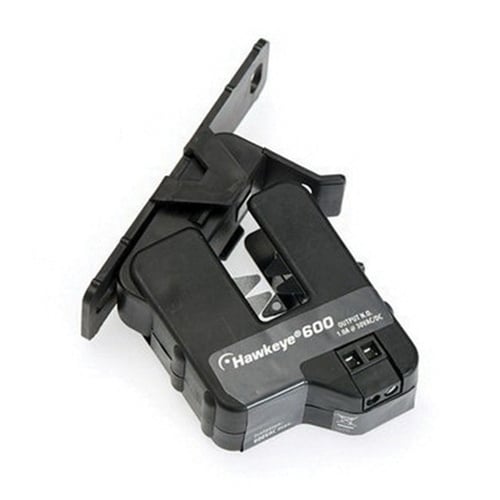

Datasheet Installation Guide The Veris H600 Veris Current Switch Mini Split-Core Current Switch, Fixed, Range .75-200AAC, N.O., 1A@30VAC/DC Specifications: Application : Building Automation Systems Current Measurement Range : 0.15 – 200 A Current Sensor type : Current Switch, AC Electrical Wiring Size : 24 – 14 AWG (0.2 – 2.1 mm²) Measurement Type : AC Current Model : H600 Monitored Frequency Range : 50 – 60 Hz Monitored Wire Size : 0.5″ (12 mm) Mounting : Split Core Operating Humidity : 10 – 90% RH, non-condensing Operating Temperature : 5 – 122 °F (-15 – 50 °C) Output Specifications : N.O. 1 A @ 30 VAC/DC Outputs : Switch output Product Certification : UL | CE Product Type : Sensor Range : HX00 Series Relay Coil Voltage : None Relay Contact Ratings : None Relay Poles/Throw : None Setpoint : Fixed Warranty : 5 years Features: Hawkeye 600 on/off current switches provide a cost-effective solution for monitoring status on unit vents, exhaust fans, recirculation pumps, and other fixed loads where belt loss is not a concern. Veris has applied new technology to the H600 model to achieve impressive improvement in turn-on levels. The Hawkeye H600 have the lowest turn-on current in the industry at a mere 0.15 A. More reliable for status than relays across auxiliary contacts Ideal for direct-drive units, unit vents, fan coil units, exhaust fans, and other fixed loads Low setpoint – minimum trip point as low as 0.15 A, avoids the need for multiple wraps of the conductor through the sensor even on loads as small as 1/5 hp Removable mounting bracket provides installation flexibility Quick installation – split-core for fast retrofit installation Induced from monitored current sensor power
