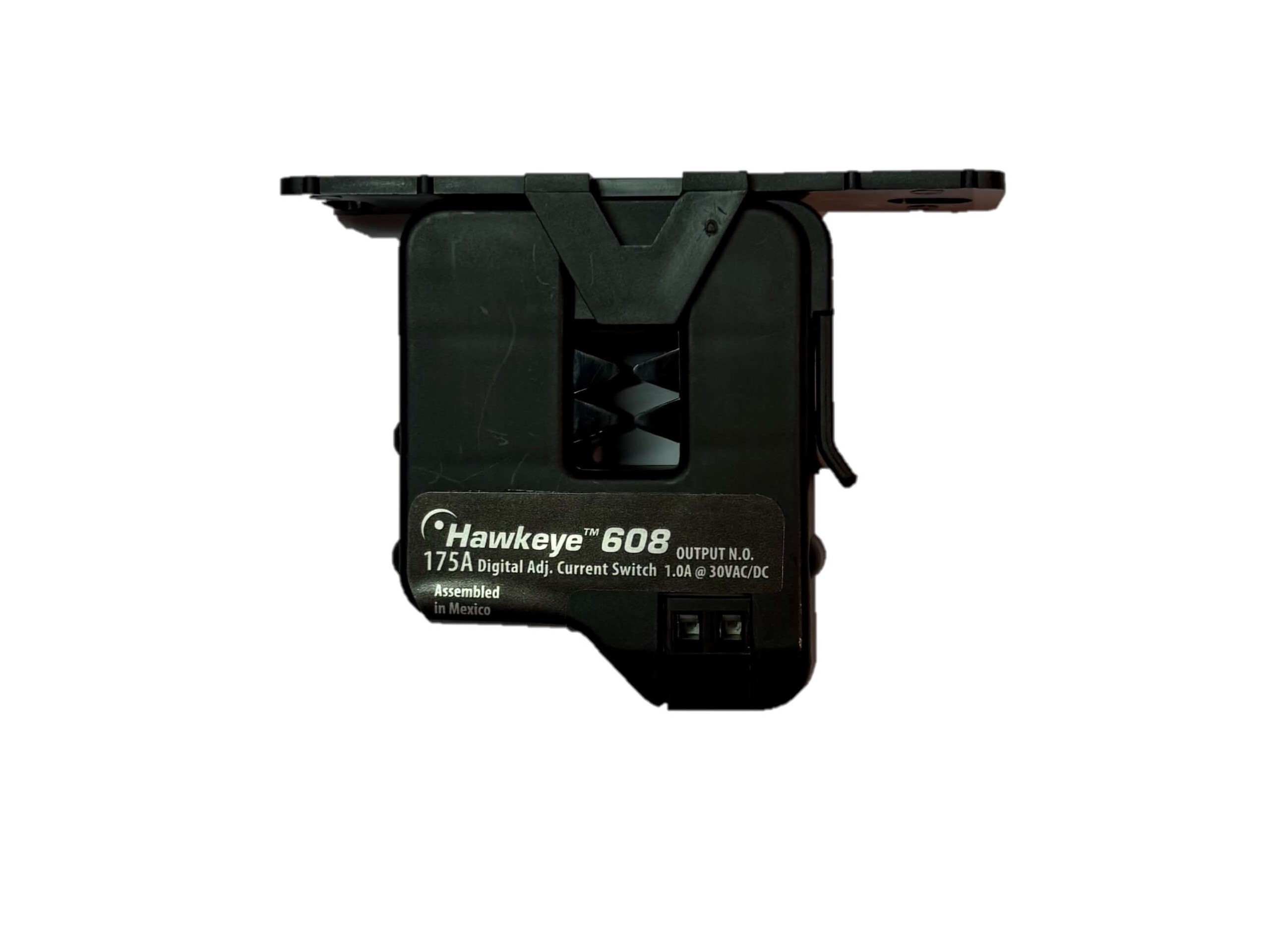

H608 Datasheet H608 Installation Guide The Veris H608 Veris Current Switch The Veris H608 Mini Split Core Current Switch, Adj., Range: 1.25-50AAC Output: N.O., 1.0A Overview The Veris H608 is an adjustable, split-core current switch designed for monitoring HVAC motors, pumps, and fans. With a wide sensing range from 0.5 to 175 amps, it provides a reliable, non-invasive way to detect motor status, verify equipment operation, or monitor system load conditions. The H608 is self-powered, eliminating the need for an external power source, and includes an adjustable trip point with a built-in LED for quick calibration and setup. Features Adjustable trip point for customized monitoring (0.5–175 A) Split-core design enables easy retrofit around existing conductors Self-powered from the monitored current (no external power needed) LED status indicator for trip verification Normally open solid-state contact rated up to 1 A @ 30 VAC/DC Compact housing fits tight control panels Durable construction rated for industrial environments 5-year limited warranty Specifications Application : Building Automation Systems Current Measurement Range : 0.5 – 175 A Current Sensor type : Current Switch, AC Electrical Wiring Size : 24 – 14 AWG (0.2 – 2.1 mm²) Measurement Type : AC Current Model : H608 Monitored Frequency Range : 50 – 60 Hz Monitored Wire Size : 0.5″ (12 mm) Mounting : Split Core Operating Humidity : 10 – 90% RH, non-condensing Operating Temperature : 5 – 140 °F (-15 – 60 °C) Output Specifications : N.O. 1 A @ 30 VAC/DC Outputs : Switch output Product Certification : UL | CE Product Type : Sensor Range : HX08 Series Relay Coil Voltage : None Relay Contact Ratings : None Relay Poles/Throw : None Setpoint : Adjustable Warranty : 5 years Applications The Veris H608 is ideal for monitoring and verifying current flow in electrical and mechanical systems. Typical applications include: HVAC fan, pump, and compressor run status monitoring Belt loss and motor failure detection Proof of flow in air handling units Automation feedback in BMS and BAS systems Load verification and preventive maintenance monitoring Its wide current range and adjustable trip point make it ideal for retrofit or new installations in industrial and commercial environments. Benefits Simple installation — split-core design eliminates circuit interruption Highly sensitive and adjustable for small or large load monitoring Self-powered operation reduces wiring complexity Bright LED indicator simplifies calibration and diagnostics Maintenance-free solid-state design for long service life
