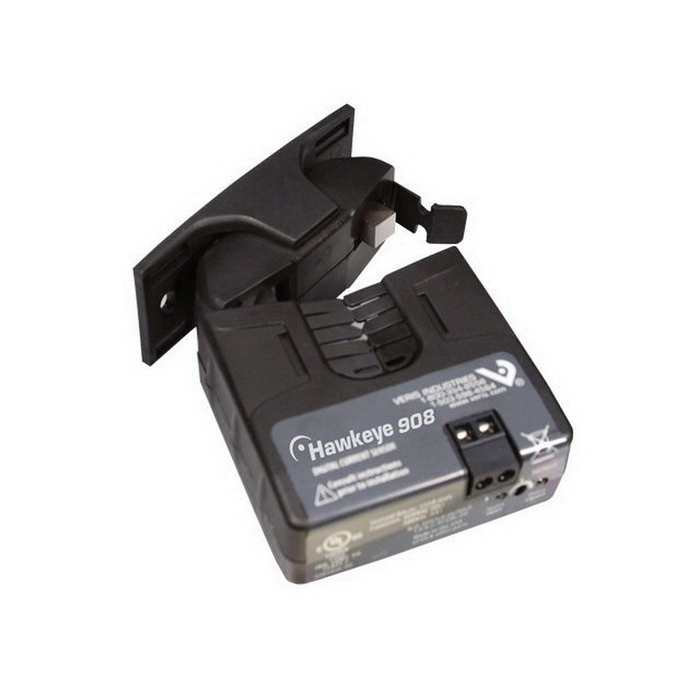

Datasheet Installation Guide The Veris H908 Veris Current Sensor Split Core Current Sensor, Adj, Calibration LEDs,Range:2.5-135AAC,Output: N.O. Specifications: Application : Building Automation Systems Current Measurement Range : 2.5 – 135 A Current Sensor type : Current Switch, AC Electrical Wiring Size : 24 – 14 AWG (0.2 – 2.1 mm²) Measurement Type : AC Current Model : H908 Monitored Frequency Range : 50 – 60 Hz Monitored Wire Size : 0.8″ (21 mm) Mounting : Split Core Operating Humidity : 10 – 90% RH, non-condensing Operating Temperature : 5 – 140 °F (-15 – 60 °C) Output Specifications : N.O. 1 A @ 30 VAC/DC Outputs : Switch output Product Certification : UL | CE Product Type : Sensor Range : HX08 Series Relay Coil Voltage : None Relay Contact Ratings : None Relay Poles/Throw : None Setpoint : Adjustable Warranty : 5 years Features: Hx08 series adjustable current switches offer high performance, with a wide array of amperage range options. These products can accurately detect belt loss, coupling shear or other mechanical failure on unit vents, exhaust fans, recirculation pumps and other fixed loads down to as little as 1/5 hp. Retrofit or new construction – high performance devices in split and solid-core housings Adjustable trip point – precise current trip point setting Small size – fits easily inside small enclosures Self-gripping iris for easy installation Status LEDs – for easy setup and local indication Induced from monitored conductor sensor power On/off status for variable frequency drive (VFD) outputs at 12 to 115 Hz, provides functional insulation only
