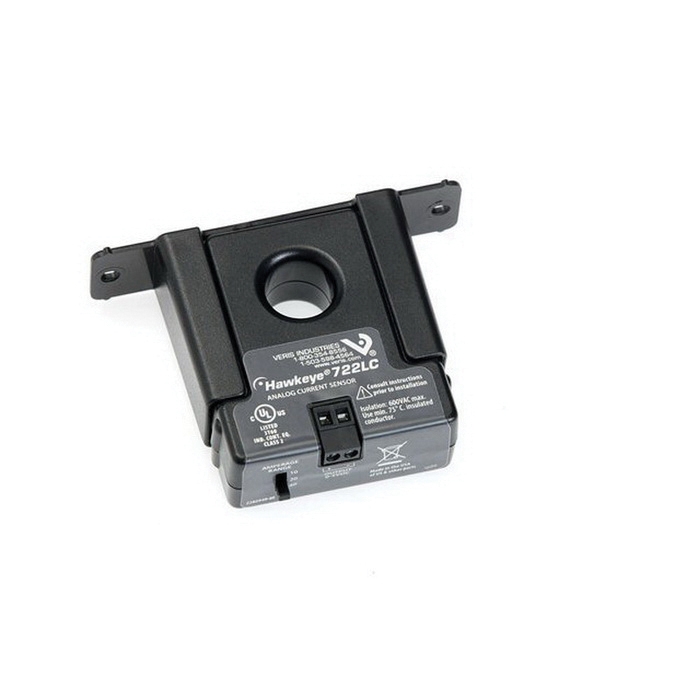

Datasheet Installation Guide The Veris H722LC Veris Current Transducer SolidCore Current Transducer,Range:0-10,0-20,0-40AAC Switch Select,Output:0-5V SPECIFICATIONS Mounting : Solid Core Current Measurement Range : 0 – 10 A | 0 – 20 A | 0 – 40 A Measurement Type : AC Current Output Specifications : 0 – 5 VDC Outputs : Analog output Relay Coil Voltage : None Relay Contact Ratings : None Relay Poles/Throw : None Application : Building Automation Systems Current Measurement Accuracy : ±2% of F.S. or 0.4 A, whichever is greater, above 10% of F.S. Current Sensor type : Current Transducer, AC Electrical Wiring Size : 24 – 14 AWG (0.2 – 2.1 mm²) Model : H722LC Monitored Frequency Range : 50 – 60 Hz Monitored Wire Size : 0.7″ (18 mm) Operating Humidity : 10 – 90% RH, non-condensing Operating Temperature : 5 – 140 °F (-15 – 60 °C) Product Type : Sensor Range : HX22 Series Product Certification : UL | CE Warranty : 5 years FEATURES The Hawkeye 722LC provide accurate load trending information with a proportional 0 to 5 VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers. Self-powered analog current sensor simplifies installation No external power required for sensor Factory calibrated ranges for increased flexibility and resolution No jumpers on unit, reduces installation error New construction – economical solid-core models feature adjustable bracket for easy alignment Induced from monitored conductor sensor power
