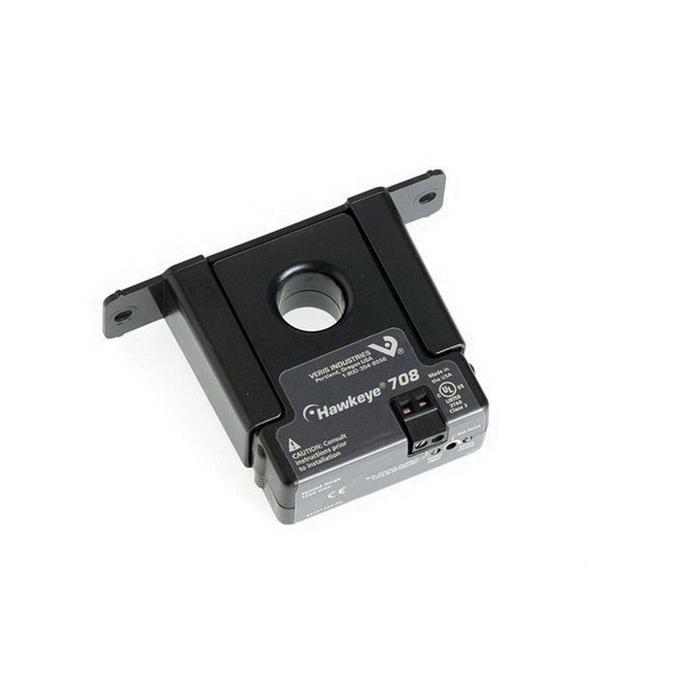

Datasheet Installation Guide The Veris H708 Veris Current Switch SolidCore Current Switch,Adj,Calibration LEDs,Range:1-135AAC,Output:N.O,1.0 Specifications: Application : Building Automation Systems Current Measurement Range : 1 – 135 A Current Sensor type : Current Switch, AC Electrical Wiring Size : 24 – 14 AWG (0.2 – 2.1 mm²) Measurement Type : AC Current Model : H708 Monitored Frequency Range : 50 – 60 Hz Monitored Wire Size : 0.7″ (18 mm) Mounting : Solid Core Operating Humidity : 10 – 90% RH, non-condensing Operating Temperature : 5 – 140 °F (-15 – 60 °C) Output Specifications : N.O. 1 A @ 30 VAC/DC Outputs : Switch output Product Certification : UL Product Type : Sensor Range : HX08 Series Relay Coil Voltage : None Relay Contact Ratings : None Relay Poles/Throw : None Setpoint : Adjustable Warranty : 5 years Features: Hawkeye H708 adjustable current switches offer high performance, with a wide array of amperage range options. These products can accurately detect belt loss, coupling shear or other mechanical failure on unit vents, exhaust fans, recirculation pumps and other fixed loads down to as little as 1/5 hp. Retrofit or new construction – high performance devices in solid-core housings Adjustable trip point – precise current trip point setting Low setpoint – minimum trip point as low as 1 A, no need for multiple wraps of the conductor through the sensor, even on loads as small as 1/5 hp Small size – fits easily inside small enclosures Self-gripping iris on split-core housings for easy installation Status LEDs – for easy setup and local indication Induced from monitored conductor sensor power
