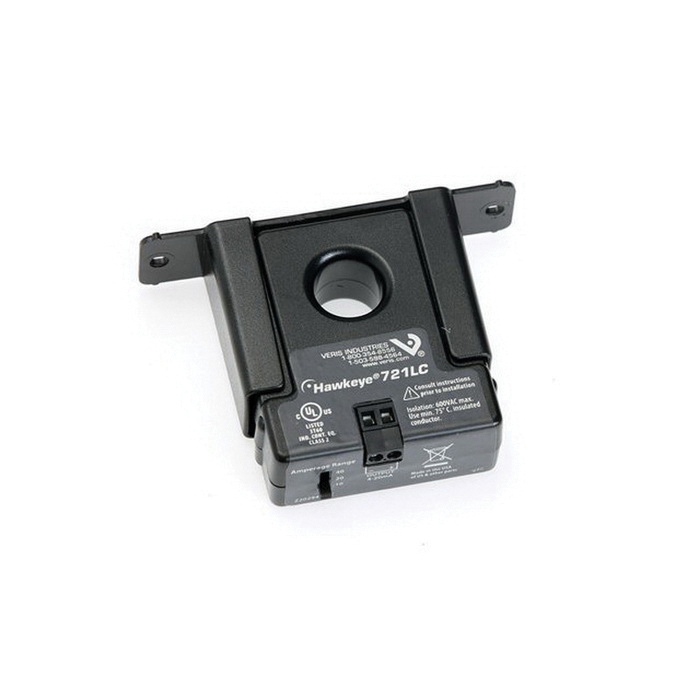

Datasheet Installation Guide The Veris H721LC Veris Current Transducer Solid Core Current Transducer,Range:0-10,0-20,0-40AAC Switch Select,Output:4-20 SPECIFICATIONS Application : Building Automation Systems Current Measurement Accuracy : ±2% of F.S. or 0.4 A, whichever is greater, above 10% of F.S. Current Measurement Range : 0 – 10 A | 0 – 20 A | 0 – 40 A Current Sensor type : Current Transducer, AC Electrical Wiring Size : 24 – 14 AWG (0.2 – 2.1 mm²) Measurement Type : AC Current Model : H721LC Monitored Frequency Range : 50 – 60 Hz Monitored Wire Size : 0.7″ (18 mm) Mounting : Solid Core Operating Humidity : 10 – 90% RH, non-condensing Operating Temperature : 5 – 140 °F (-15 – 60 °C) Output Specifications : 4 – 20 mA Outputs : Analog output Product Certification : UL | CE Product Type : Sensor Range : HX21 Series Relay Coil Voltage : None Relay Contact Ratings : None Relay Poles/Throw : None Warranty : 5 years FEATURES The Hawkeye H721LC provide accurate load trending information with a proportional 4 to 20 mA output signal. Preset slide switches provide easy field setup of sensed amperage range with no need for jumpers. Power the sensor, and receive the signal with only 2-wires, lower cabling and commissioning costs than with traditional 3-wire sensors Economical solid-core features adjustable bracket for easy alignment Factory calibrated switch-selectable ranges for high resolution and installation ease Three field-selectable ranges per unit, fewer versions to choose from, stock, and install Removable mounting bracket for installation flexibility 100% solid-state no moving parts to fail 30 mA at 12 to 30 VDC sensor power
