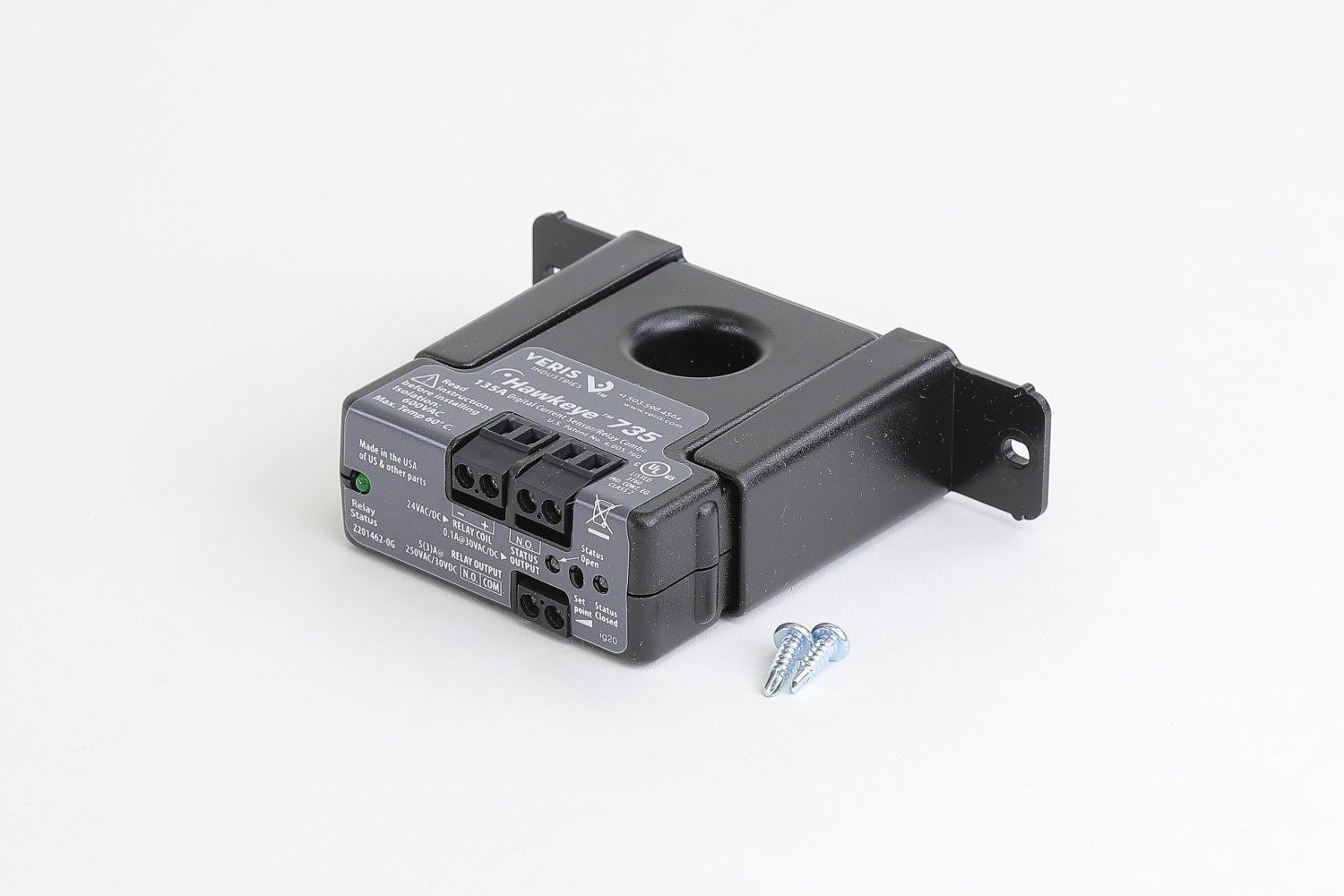

The Veris H735 Veris Current Switch Current Switch/Relay Combo,Solid Core,SPST SPECIFICATIONS Application : Building Automation Systems Current Measurement Range : 1 – 135 A Current Sensor type : Current Switch, AC Electrical Wiring Size : 24 – 14 AWG (0.2 – 2.1 mm²) Measurement Type : AC Current Model : H735 Monitored Frequency Range : 50 – 60 Hz Monitored Wire Size : 0.7″ (18 mm) Mounting : Solid Core Operating Humidity : 10 – 90% RH, non-condensing Operating Temperature : 5 – 140 °F (-15 – 60 °C) Output Specifications : N.O. 1 A @ 30 VAC/DC Outputs : Switch output | Relay Product Certification : UL Product Type : Sensor Range : HX35 Series Relay Coil Voltage : 24 VAC/DC Relay Construction : Mechanical Relay Contact Ratings : Resistive: 5 A @ 250 VAC | Resistive: 5 A @ 30 VDC | Inductive: 3 A @ 250 VAC | Inductive: 3 A @ 30 VDC Relay Poles/Throw : SPST Setpoint : Adjustable Warranty : 5 years FEATURES The Hawkeye relay combination series is the ideal solution for the automation installer. These units combine a current switch and relay into a single package, reducing the space required for total control of fans and pumps. The current switch and relay operate independently of one another. These devices allow start/stop control and status monitoring with one device instead of two. Combined relay and status – combines command relay and fan/pump status sensor in a single, easy-to-install unit Fan and pump status – detect belt loss and motor failure ideal for fan and pump status Polarity insensitive status outputs – fast and easy installation Two outputs – H748 feature a SPDT command relay control two outputs with a single relay Easy setup – relay and status LEDs Induced from monitored conductor sensor power
