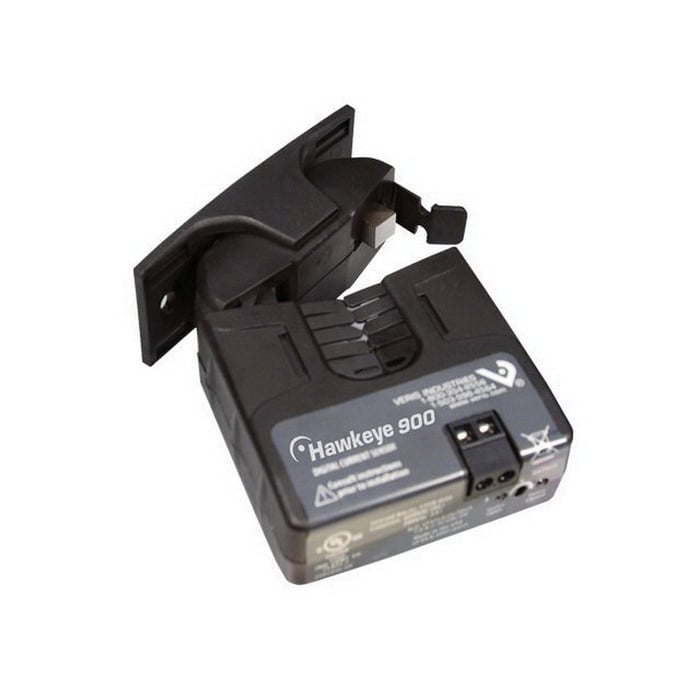

Datasheet Installation Guide The Veris H900 Veris Current Monitor Split Core, Fixed, Range: 1.5-200AAC, Output: N.O., 1.0A@30V; Hawkeye 1.5 to 200 A Fixed Trip Point Current Switch, Split-Core SPECIFICATIONS Mounting : Split Core Current Measurement Range : 1.5 – 200 A Measurement Type : AC Current Output Specifications : N.O. 1 A @ 30 VAC/DC Outputs : Switch output Relay Coil Voltage : None Relay Contact Ratings : None Relay Poles/Throw : None Setpoint : Fixed Application : Building Automation Systems Current Sensor type : Current Switch, AC Electrical Wiring Size : 24 – 14 AWG (0.2 – 2.1 mm²) Model : H900 Monitored Frequency Range : 50 – 60 Hz Monitored Wire Size : 0.8″ (21 mm) Operating Humidity : 10 – 90% RH, non-condensing Operating Temperature : 5 – 140 °F (-15 – 60 °C) Product Type : Sensor Range : HX00 Series Product Certification : UL | CE Warranty : 5 years FEATURES Hawkeye 900 on/off current switches provide a cost-effective solution for monitoring status on unit vents, exhaust fans, recirculation pumps and other fixed loads where belt loss is not a concern. More reliable for status than relays across auxiliary contacts Ideal for direct-drive units, unit vents, fan coil units, exhaust fans, and other fixed loads Low setpoint – minimum trip point as low as 1.5 A, avoids the need for multiple wraps of the conductor through the sensor even on loads as small as 1/5 hp Removable mounting bracket provides installation flexibility Quick installation – split-core for fast retrofit installation Flexibility – bracket on H900 can be installed in three different configurations Induced from monitored current sensor power
