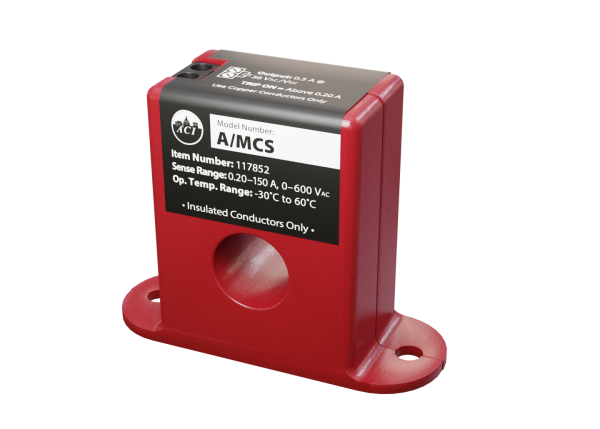

A/MCS ACI Current Status Switch (117852)

Product overview Mini, Fixed Current Switch, Solid Core, NO, 0 to 150A Range, <0.20A Trip Point   Application On/Off “Status” Indication Local Alarms such as Strobes/Audible Alarms Pumps Fans Compressors Lighting Status and Usage Information Ovens Process Control Industrial Equipment OEM Opportunities Product specifications Monitored Current Type: AC Current Maximum AC Voltage: 600 VAC Operating Frequency Range: 50/60 Hz Core Style: Solid-Core and Split-Core Versions available (See Ordering Grid) Sensor Power: Induced from the Monitored Conductor (Insulated Conductors only) Amperage Range: See Ordering Grid Isolation Voltage: 2200 VAC Trip Point Style: Fixed Trip Point Contact Type: Normally-Open “N/O” “Status” Contact Rating: 0.5A Continuous @ 36 VAC/VDC “Status” Contact “On” Resistance | “Off” Resistance: < 0.5 Ohms (tripped) | > 1 Meg Ohms (Open) Response Time: A/MCS: < 50 mS typical | A/MSCS: < 40 mS typical Aperture Size: 0.53” (13.46 mm) Operating Temperature Range: -22 to 140ºF (-30 to 60ºC) Operating Humidity Range: 0 to 95%, non-condensing Storage Temperature | RH Range: 41 to 95°F (5 to 35°C) | 40 to 85% RH, non-condensing Enclosure Material | Flammability Rating: PC/ABS (Polycarbonate/ABS Blend) | UL94-V0 Wiring Connections: 2 Position Screw Terminal Block (Not Polarity Sensitive) Wire Size: 16 to 22 AWG (1.31 mm2 to 0.33 mm2) Copper Wires only Terminal Block Torque Rating: 4.43 to 5.31 in-lbs. (0.5 to 0.6 Nm) Minimum Mounting Distance: 1” (2.6 cm) between current switch (Relays, Contactors, Transformers) Agency Approvals: UL/CUL US Listed (UL 916) Energy Management Equipment (File # E334792), CE, RoHS2, WEEE Product Weight: A/MCS: 0.15 lbs. (0.068 kg) | A/MSCS: 0.20 lbs. (0.091 kg) Product Dimensions: A/MCS (Solid-Core): 2.510” (63.82 mm) x 0.940” (23.94 mm) x 2.000” (50.80 mm)A/MSCS (Split-Core): 2.650” (67.19 mm) x 0.940” (23.94 mm) x 2.380” (60.49 mm)
