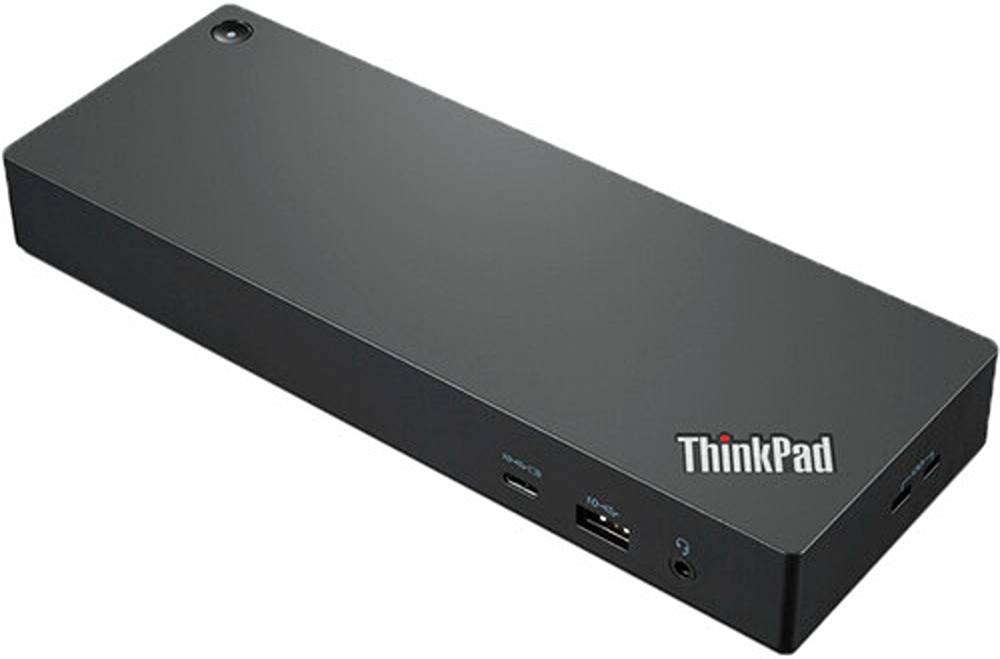

Boost your productivity by connecting the Lenovo ThinkPad Universal Thunderbolt 4 Dock to your compatible laptop system. Taking advantage of the 40 Gb/s Thunderbolt 4 bandwidth, this docking station allows you connect either one 7680 x 4320 resolution 8K monitor or up to four 4K 3840 x 2160 resolution displays through its HDMI 1.4, Thunderbolt 4, and two DisplayPort 1.4 ports to significantly enhance your multitasking efficiency. The Thunderbolt 4 connector also supports up to 100W power delivery There are also four USB 3.2 Gen 2 Type-A ports and a Type-C port that can transfer up to 10 Gb/s with compatible devices. Other convenient features include a Gigabit Ethernet port for high-speed network connections and a 3.5mm audio jack. Thunderbolt 4 Host Connection 2 x DisplayPort / 1 x HDMI Ports Supports One 8K or Four 4K Monitors 4 x USB 3.2 Gen 2 Type-A / 1 x Type-C 1 x Thunderbolt 4 Port 1 x Gigabit Ethernet Port 1 x 3.5mm Audio Jack Up to 100W Power Delivery VESA Mount Compatible Display Configuration Support One 7680 x 4320 display @ 30 Hz (HDMI only)One 7680 x 4320 display @ 30 Hz (HDMI only) and one d 5120 x 2880 display @ 60 Hz (Thunderbolt 4 Only)Up to four 3840 x 2160 displays @ 60 Hz Flexible Mounting Mount the ThinkPad Universal Thunderbolt 4 Dock to a wall or monitor stand using VESA mount screws. Security Two Kensington / Lenovo NanoSaver security lock slots are available. The second slot supports T-bar locking technology or MiniSaver lock standards. TECHNICAL SPECS Ports USB 4 x USB 3.1 / USB 3.2 Gen 2 Type-A1 x USB 3.1 / USB 3.2 Gen 2 Type-C Thunderbolt 1 x Thunderbolt 4 (100 W) Ethernet 1 x RJ45 (10/100/1000 Mb/s) Display 1 x HDMI 2.12 x DisplayPort 1.4 Audio 1 x 1/8″ / 3.5 mm Headphone/Microphone Combo Jack Media Card Reader None Host Connections Host Connection Thunderbolt 4 (USB Type-C) Connection Type Detachable Cable Powered Connection 100 W General Number of Displays Supported 4 Maximum Resolution Supported 7680 x 4320 at 30 Hz (Single Display)3840 x 2160 at 60 Hz (Dual Display)3840 x 2160 at 60 Hz (Triple Display)3840 x 2160 at 60 Hz (Quad Display) Compatibility Lenovo ThinkPad OS Compatibility Windows*As of December, 2021: Check with manufacturer for the most up-to-date compatibility UASP Support Yes Power Power Source AC Adapter Power Port Barrel Connector (Unspecified Diameter) DC Input Power 20 VDC at 6.75 A Environmental Operating Temperature 32 to 104°F / 0 to 40°C Operating Humidity 95%
